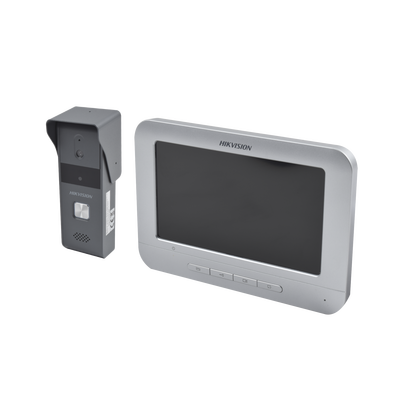

Analogue Video Doorphone Kit with 7 "Color LCD Screen / IP65 Outdoor Street Front
 Main characteristics of the DS-KB2421-IM street front.
 IR auto adaptive included for 2 meters.
 Protection: IP65 (Note: requires protection as it is not for outdoor use)
 720 x 576 @ 30 fps pinhole camera. 98 ° angle.
 Dry contact relay output for opening.
 Built-in audio IN / OUT.
 Built-in speaker (Volume is not configurable).
 Material: Aluminum
 Power consumption: 3 W.
 Operating temperature: -30º ~ 60º C (-22º ~ 140º F)
 Dimensions: 128 × 42 × 24.8 mm (7.7 "× 5.2" × 0.7 ").
 C haracteristics of monitor street DS-KH2220.
 7 "color screen.
 Resolution: 800 x 400.
 Audio IN / OUT
 Built-in Microphone and Speaker (Volume is not configurable).
 Supports street front monitoring and one analog camera per monitor.
 Physical and Electrical Characteristics:
 Material: Aluminum.
 Power supply: 12 Vdc / 5W (Included).
 Operating temperature: -10º ~ 55º C (14º ~ 131º F)
 Dimensions: 195.8 × 132.8 × 18.39mm (7.7 "× 5.2" × 0.7 ")
 Outstanding Features:
 Easy 4-wire installation we can reach a maximum distance of 100 meters with 22 cal cable.
 It is not recommended to use UTP cable for installation.
 Scopes:
 * Expandable only up to 3 monitors (DS-KH2220).
 * Expandable only up to 2 street fronts (DS-KB2421-IM).
 Warranty: 1 Year
 * DOES NOT INCLUDE INSTALLATION
 * PUBLISHED PRICE COUNTED.
